SPC Automatic Recycling System for SPC flooring production. This system automatically recycles SPC waste such as edge trims and rejected planks from the extrusion line. It integrates crushing, milling and hot-cut pelletizing to produce reusable SPC granules. Designed for high efficiency and energy saving, it helps SPC flooring factories reduce raw material costs, improve productivity and achieve sustainable production with zero waste.

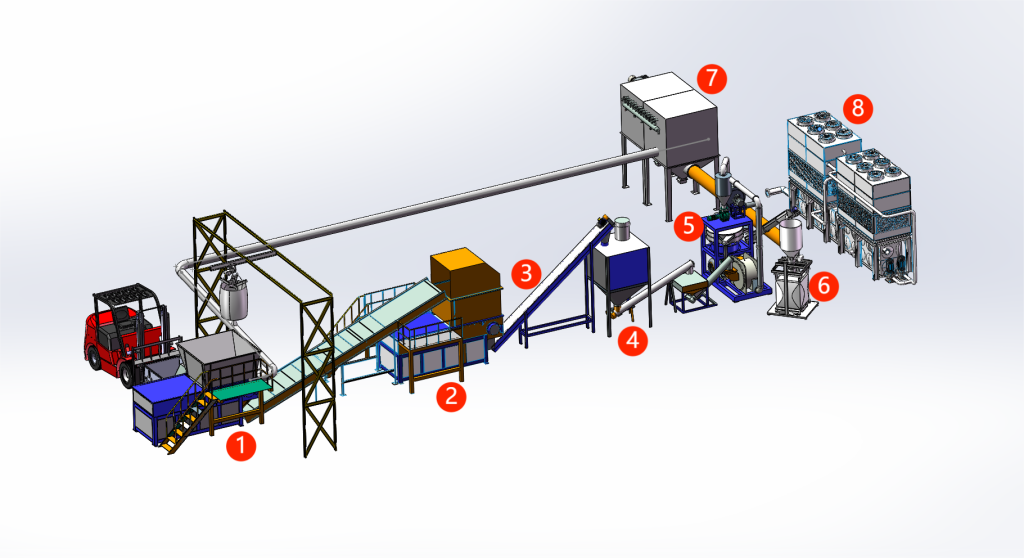

| SPC Flooring Shredder+ Crusher+ Miller Recycling System | |
| 1.Single Shaft Shredder | Shreds large sheets into 20–30 mm particles. |
| 2.Crusher | Crushes materials into 12–16 mm particles. |
| 3.U-Type Feeder | Transfers crushed particles to the buffer silo. |
| 4.Buffer Silo | Temporary storage for crushed particles. |
| 5.Miller | Grinds particles into 10–60 mesh powder. |
| 6.Ton bag filler | The SPC powder is conveyed into the buffer tank by a screw conveyor and then fed into the ton bag. |
| 7.Pulse Dust Collector | Using high-pressure airflow pulses to clean the filters, the fine particles from grinding are collected and recycled, reducing the harm caused by dust. |
| 8.water cooling tower | It is used to cool down the Grinder. |
| Technical parameters: | |
| Function | Shreds large sheets into 20–30 mm particles. |
| Motor Power | 75 kW |
| Reducer | Jiangsu Guomao H207HH-20-B |
| Rotor Diameter | 420 mm |
| Screen Mesh Aperture | 28 mm |
| Chamber Thickness | 25 mm |
| Rotary Blades | 139 pieces |
| Fixed Blades | 2 pieces |
| Blade Material | SKD-11 |
| Hydraulic Pump Power | 7.5 kW |
| Hydraulic Cylinders | 100×1,300 mm (2 units) |
| Weight | 7,000 kg |
| Screen Replacement | Hydraulic cover opening and screen replacement |
| Dimensions | 4,200×2,100×2,400 mm |
| Technical parameters: | |
| Function | Crushes materials into 12–16 mm particles. |
| Motor Power | 90 kW |
| Rotor Diameter | 700 mm |
| Screen Mesh Aperture | 14 mm |
| Chamber Thickness | 40 mm |
| Rotary Blades | 5 blades × 5 groups |
| Fixed Blades | 3 blades × 2 groups |
| Blade Material | SKD-11 |
| Weight | 6,500 kg |
| Screen Replacement | Hydraulic cover opening and screen replacement |
| Dimensions | 2,300×2,000×3,800 mm |
| Technical parameters: | |
| Function | Transfers crushed particles to the buffer silo |
| Capacity | 1,000–2,500 kg/h |
| Motor Power | 4 kW (Siemens Motor) |
| Reducer Brand | Siemens |
| Conveyor Length | 5,000 mm |
| Screw Diameter | φ280 mm |
| Material Contact Parts | Stainless steel |
| Frame | 80×80×3 steel pipe |
| Weight | 850 kg |
| Dimensions: | 5,500×350×500 mm |
| Technical parameters: | |
| Function | Temporary storage for crushed particles |
| Pulse Dust Collector Power | 0.75 kW |
| Material Contact Parts | Stainless steel |
| Storage Capacity | 3 tons |
| Weight | 1,600 kg |
| Dimensions | 2,200×1,800×3,400 mm |
| Technical parameters: | |
| Function | Grinds particles into 10–60 mesh powder. |
| Blade Diameter | Ø800 mm |
| Speed | 2,500 rpm |
| Blades | 28 rotary + 20 fixed |
| Main Motor Power | 90 kW |
| Fan Power | 11 kW |
| Vibrating Screen Diameter | Ø1,200 mm |
| Vibrating Screen Motor Power | 1.5 kW |
| Butterfly Valve Motor Power | 1.5 kW |
| Discharge Valve | 7L |
| Output | 500 kg/h |
| Technical parameters: | |
| Function | Temporary storage for the particles ground by the grinder. |
| Material Contact Parts | Stainless steel |
| Frame | 80×80×3 steel pipe |
| Storage Capacity | 30 tons |
| Weight | 3,400 kg |
| Dimensions | 3000×3000×5000mm(modifiable) |
| Technical parameters: | |
| Filtration Area | 90 m2 |
| Power: | 7.5 kW (Siemens Motor) |
| Airflow | 5,500 m³/h |
| Dimensions | 1,800×1,200×4,300 mm |
| Cleaning Method | Pulse jet cleaning |
| Control | Programmable pulse controller |
| Filters | 96 units |
| Electrical Components | Schneider |
| Filtration Speed | 3.5 m/s |
| Efficiency | ≥99.5% |
