SPS-360 LVT Flooring Trimming (Production)Line

The SPS-360 offers complete edge processing thanks to its comprehensive equipment. The powerful motors on all units provide the unrestricted power which is needed to process a broad spectrum of different parts. The series can be used for formatting panels with the joint trimming unit, gluing edges in high quality, precise snipping and perfect finish processing. The profile trimming unit with four motors, for chamfering and rounding the edges on panel front and rear side, offers a premium standard of processing quality.

Product Description:

The SPS-360 offers complete edge processing thanks to its comprehensive equipment. The powerful motors on all units provide the unrestricted power which is needed to process a broad spectrum of different parts. The series can be used for formatting panels with the joint trimming unit, gluing edges in high quality, precise snipping and perfect finish processing. The profile trimming unit with four motors, for chamfering and rounding the edges on panel front and rear side, offers a premium standard of processing quality.

Technical Specifications:

No. Items Parameters
1 Machine length [mm] 6.970
2 Feed speed [m/min] 18–28
3 Workpiece thickness [mm] 12–60
4 Edge thickness [mm] 0,3–3
5 Strip thickness [mm]

Product Three Views:

Q&A:

Q: What is LVT Flooring Trimming (Production)Line?

A: LVT Flooring Trimming (Production)Line is a fully automatic and intelligent production line that can trim, cut, chamfer, and inspect the LVT flooring planks with high speed and high quality.



Q: What are the features of LVT Flooring Trimming (Production)Line?

A: Some of the features of LVT Flooring Trimming (Production)Line are:

  • It can process up to 12 planks per minute, achieving a high production efficiency and a low production cost.
  • It can automatically adjust the trimming and cutting parameters according to the size and shape of the planks, ensuring the accuracy and uniformity of the products.
  • It can perform chamfering on four sides of the planks, creating a smooth and elegant appearance of the products.
  • It can inspect the quality of the products by using a vision system and a laser scanner, detecting and rejecting any defective or unqualified products.



Q: How to install and operate LVT Flooring Trimming (Production)Line?

A: To install and operate LVT Flooring Trimming (Production)Line, you need to follow these steps:

  • Before installing the production line, prepare a suitable site with enough space, power supply, water supply, and ventilation. Follow the installation manual and connect each module of the production line properly.
  • After installing the production line, test its performance by running it with some sample planks. Check if there are any errors or malfunctions and fix them accordingly.
  • To operate the production line, load the planks into the feeding conveyor and set the desired parameters on the control panel. Start the production line and monitor its operation. Collect the finished products from the discharge conveyor and store them properly.
  • To maintain the production line, clean it regularly and lubricate its moving parts. Replace any worn-out or damaged parts timely. Keep the production line in good condition and avoid overloading or overrunning.

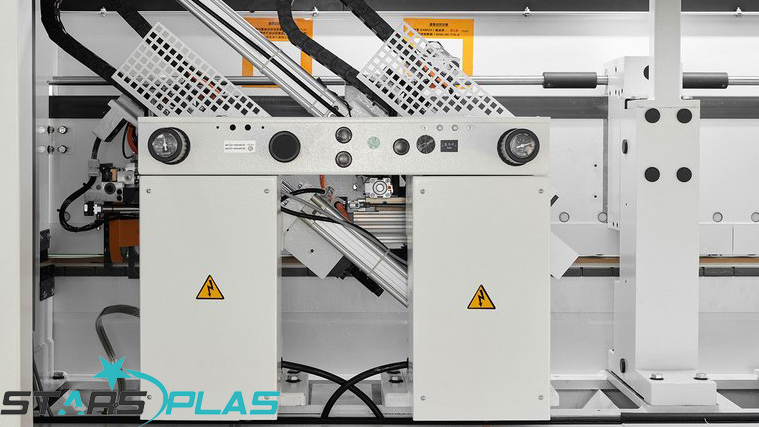

Machine Display:
